Acryo 4K cryocooler
Acryo 4K refrigerator uses a two-stage GM or pulse tube refrigerator as the cooling source. The sample environment for a standard Acryo 4K is vacuum. Acryo 4K has the characteristics of large temperature operation range, simple operation, and wide application range. Options include helium sample environment with indium sealed chamber, customized sample space, ultra-high vacuum compatibility, low vibration, optical windows, and feedthroughs, etc.

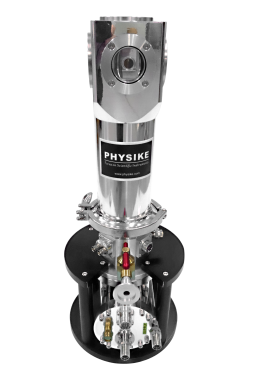

Acryo 4K with optical windows
Typical specifications | |
| Cold Head | 4K GM or pulse tube |
Temperature range | 2.5K-325K |
Sample environment | Vacuum |
Applications | Electrical, optical, infrared detectors, cascaded lasers, neutron scattering, DLTS, FTIR, X-ray、 High pressure(DAC), substrate isolation, low-temperature cold trap, ion trap, cold molecules, microwave devices, single photon detection, Squid, TES, and quantum devices |

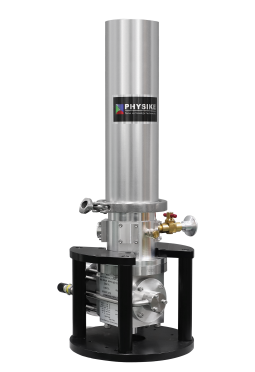

Acryo 4K with 500K temperature upper limit
Options | |
Cold head | GM（0.25W，0.5W，1W,1.2W,1.8W,2.5W,4W）@4.2K or pulse tube (1W,1.5W)@4.2K |
Low vibration assembly | Cold head suspension, flexible bellows and helium exchange chamber, vibration-damping sandbox |
Temperature upper limit | 500K or 800K |
Sample environment | Indium sealed helium gas chamber, UHV compatible |
Sample space | Compact, Large sample space |
Feedthroughs | Multipin/SMA/2.92mm/2.4mm/1.85mm/1.0mm，BNC/Triax BNC、fiber |
Window material | γ/χ/UV ray, Vis/IR/THz, Mylar, Kapton, Aluminum, Beryllium, Vanadium |
Sample holders | PUCK/LCC/DIP, optical, probe, solar cell, dielectric testing, etc |
Wiring | Twisted pair wires, Flexible coax/triaxial cables, RF semi-rigid cables |
Examples | ||
|
|
|

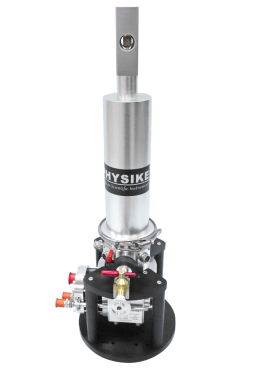

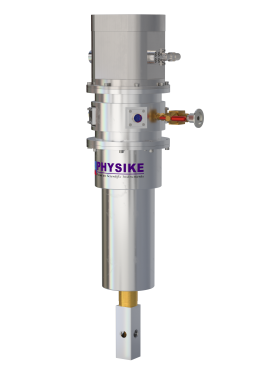

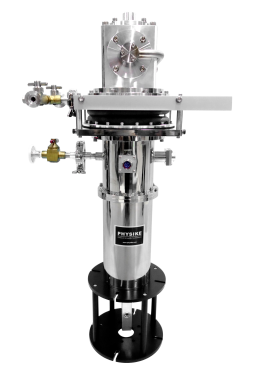

Acryo 4K with GM cold head compact tail and puck sample | Acryo 4K with pulse tube cold head and compact tail | Acryo 4K with flexible bellows and helium exchange chamber |
 |  | |

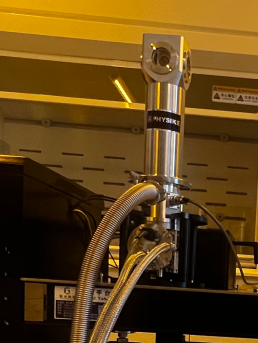

Acryo 4K with flexible bellows and helium exchange chamber for microscopy experiments | Acryo 4K for γ irridiation | |
 |  |  |

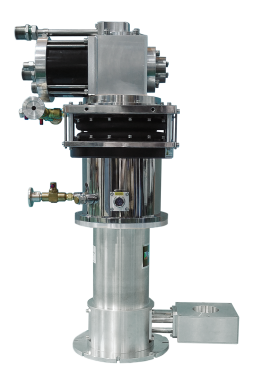

Acryo 4K with pulse tube cold head and CF flange | Acryo 4K with top optical window for PL | Acryo 4K for DLTS |
 |  |  |

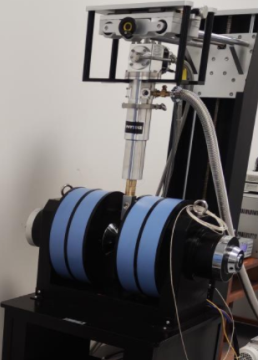

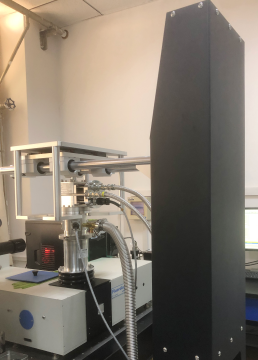

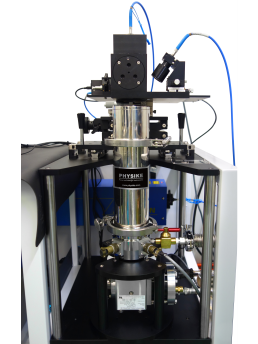

Acryo 4K compatible with Horiba Fluorolog-3 spectromete | Acryo 4K with pulse tube cold head for cooling cascade lasers | Acryo 4K with compact tail matching with electromagnet |
 |  |  |

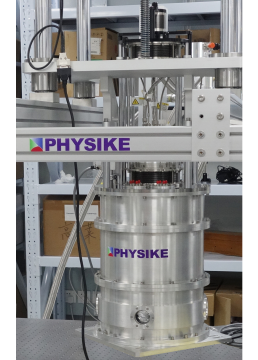

Acryo 4K with pulse tube cold head for testing Squid and TES | Acryo 4K with 2.5W@4.2K GM cold head, 30cm and 40cm cold plate | Acryo 4K compatible with Horiba QuantaMaster 8000 spectrometer |
 |  |  |

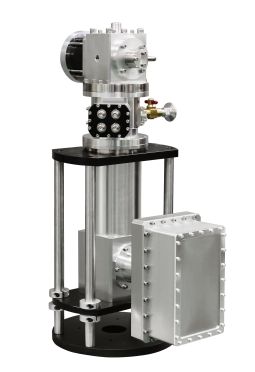

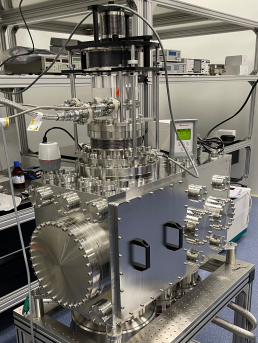

Acryo 4K with indium sealing chamber for sufficient cooling of DAC cell | Acryo 4K with 2.5W@4.2K GM cold head and 35cm cold plat | Acryo 4K with UHV chamber for radon gas standard sample preparation |
